Gangways

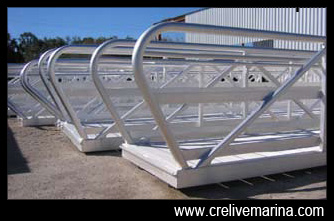

Aluminum Gangways are designed tremendous strong and durable. The Gangways feature a pipe truss design and TIG/MIG welded from 6005 T6 and 6061 T6 alloy.
Available from 3 to 36 meters in length with a capacity range from 200 to 500 kg/m2. Crelive Marina gangways are always admired. As the link between land and water, they comply with all the regulations and norms while keeping a distinctive look and combining design and solidity. The provision to furnish your gangway with a security gate system allows you to control access.
Decking
Various types of decking are available:
- Rot-proof hardwood or synthetic wood decking planks riveted to aluminum girders, each being independent and interchangeable.
- Aluminium decking, the planks of which are butt-welded to the dock frame.
These types of plating are particularly designed to withstand professional use under difficult conditions. Handrails
several types of handrail fillers are available:
- Aluminium rails
- Aluminium bars
- Wood
- Perforated aluminium sheeting
- Stainless steel cables
 |
 |
 |
|

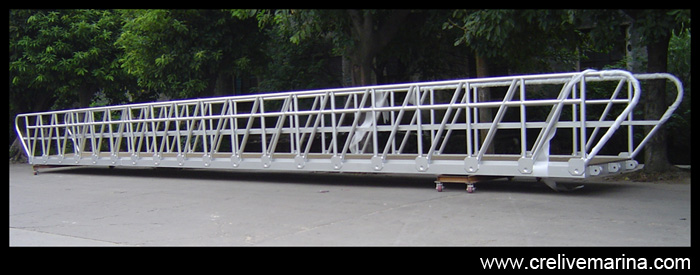

Gangway has welded construction with slip-resistant walkway, side curb, and rail. Lengths from 3m-36m, and widths from1m to 3m. |

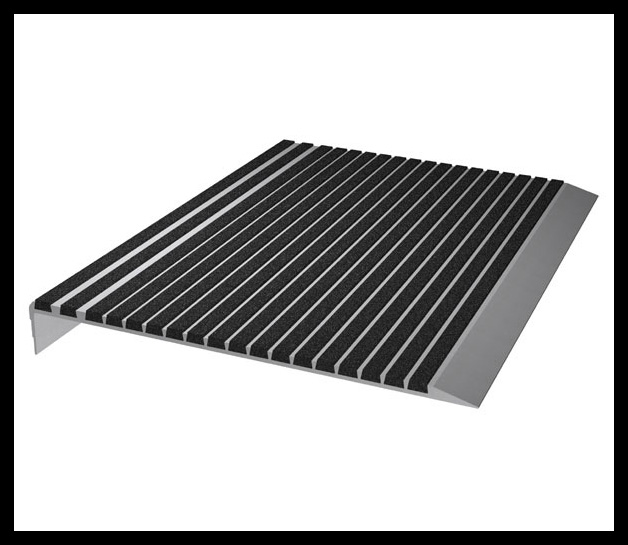

Hinged aluminum plate creates smooth transition between shore grade and aluminum gangway deck. |
Gangway roller kit allows end of gangway to adjust with changing water levels. Available for all gangway kits. |
| |
|
|
|
|
|
|
The specifications are customized as well, exactly meet end user's requirement. |
