Aluminum Frame Pontoon

 TECHNICAL DATA

 LIVE LOAD:  200-350 kg/m2
 FREE BOARD:  0,55 - 0,65 m
 DEAD LOAD:  240-400 kg/m2
 MAIN STRUCTURE: Aluminium alloy
 FLOAT:  HDPE or FRP float with polystyrene core
 DECKING: Hard wood or WPC

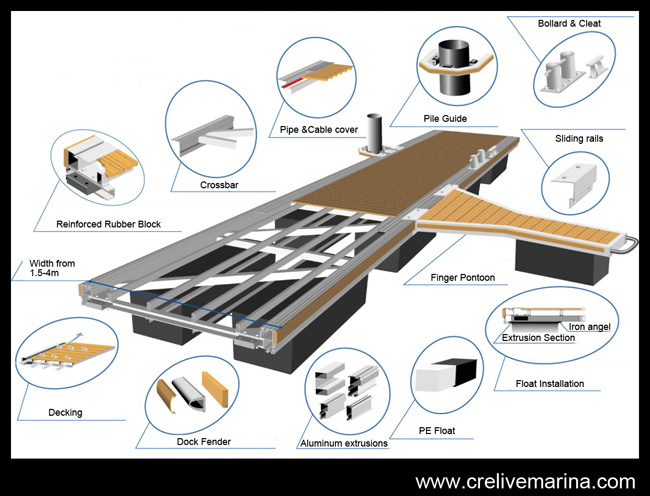

Durability, versatility and elegance are the main peculiarities of the Aluminum frame pontoon. It has a main structure made of special aluminium alloy section bars for marine environment. The decking is made of precious exotic wooden staves fixed with stainless steel bolts and screws. Buoyancy is assured by HDPE/FRP floats with high density polystyrene foam core. Thanks to the special design of main profiles and to the element modular structure, mooring accessories (cleats,fingers,etc.) and modules are interconnected with the utmost flexibility. Moreover, the pontoon is provided with lateral duct covers to house the equipment. They are finished with continuous fenders made of wood or anti-age plastic materials. The head is preset for longitudinall connection of more modules through a semi-elastic "silent-block" system composed by neoprene shock absorbers and stainless steel bolts and screws.

For accessories and variants, please feel free to contact us.

The specification are customized as well, exactly meet end user's requirement.
